Please note these kits are made to order and have a lead time of up to 5-7 days before delivery.

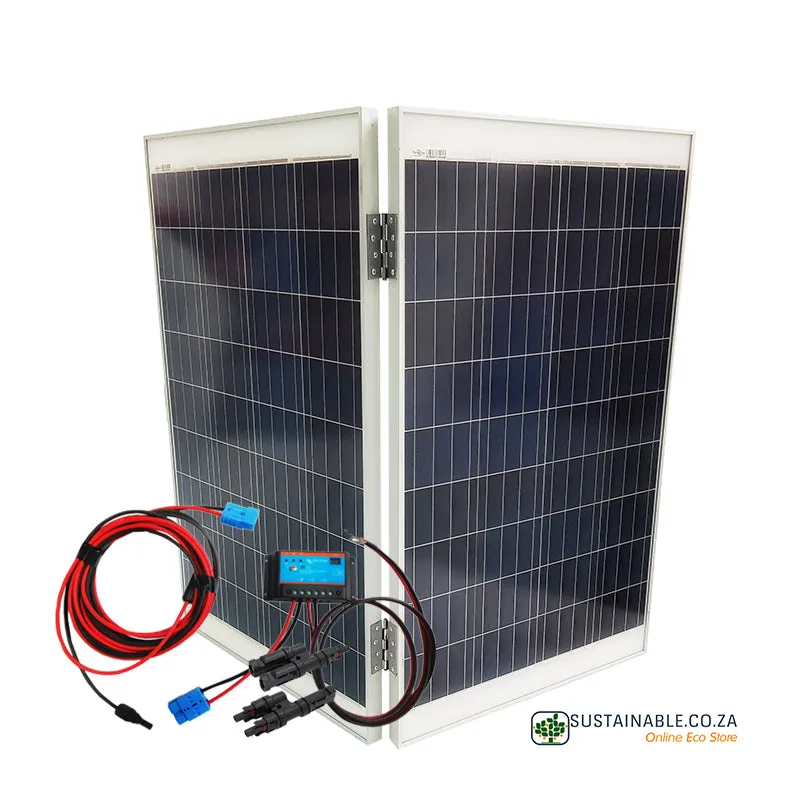

Kit Contents

• High performance polycrystalline solar cells.
• Adjustable support legs – to change inclination of the solar panels for direct sun exposure.

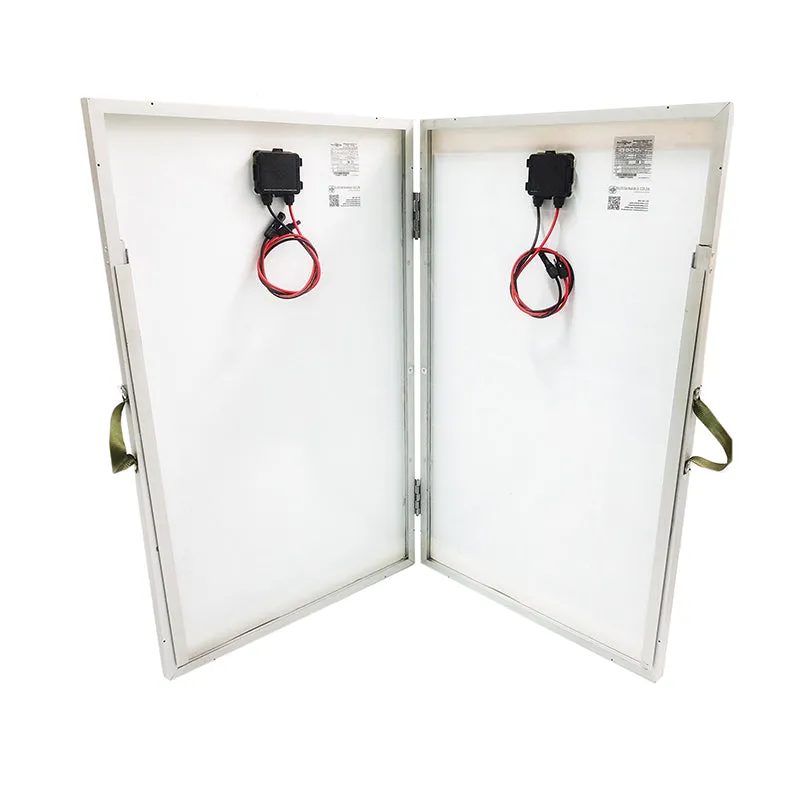

• Sturdy aluminium frame, tempered glass, with polymer protection corners.

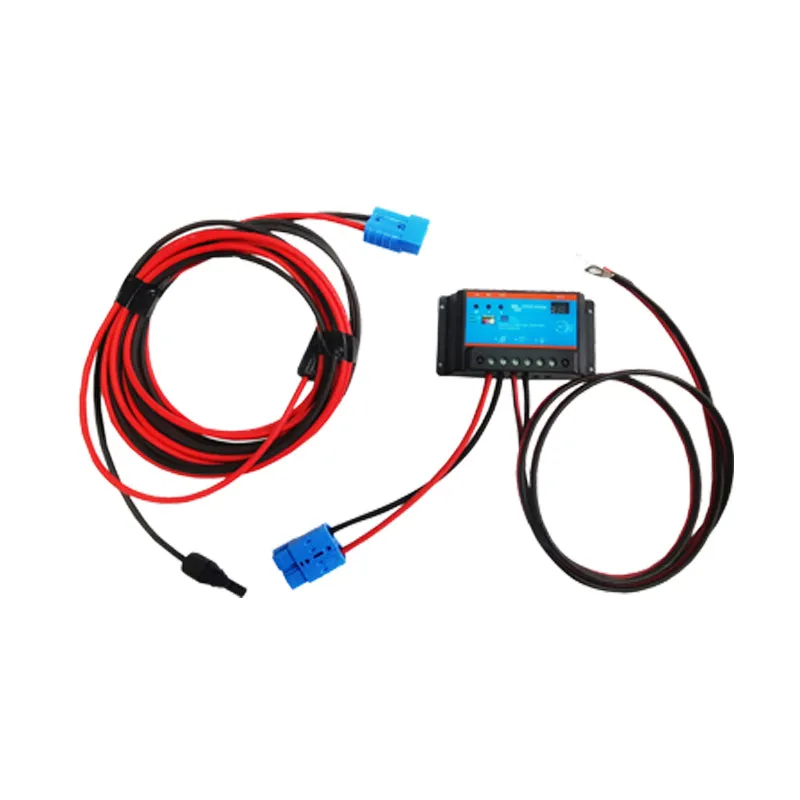

• 6m of 4mm Solar cable with Anderson plug (50A) and 1m of 4mm ripcord with eyelets .

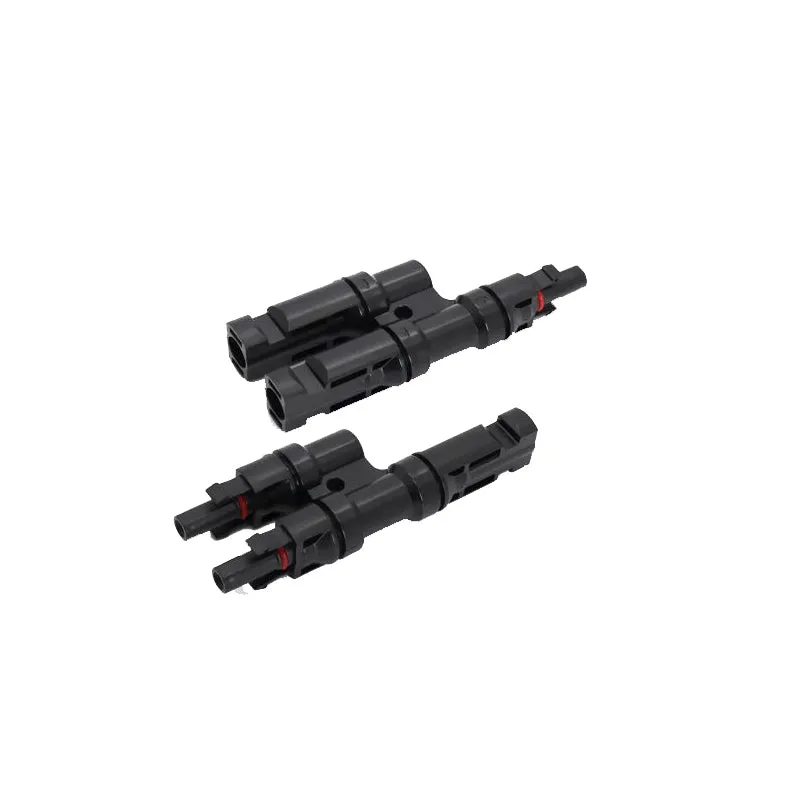

• 1 x MC4 Branch connector pack for neat parallel and series panel connections.

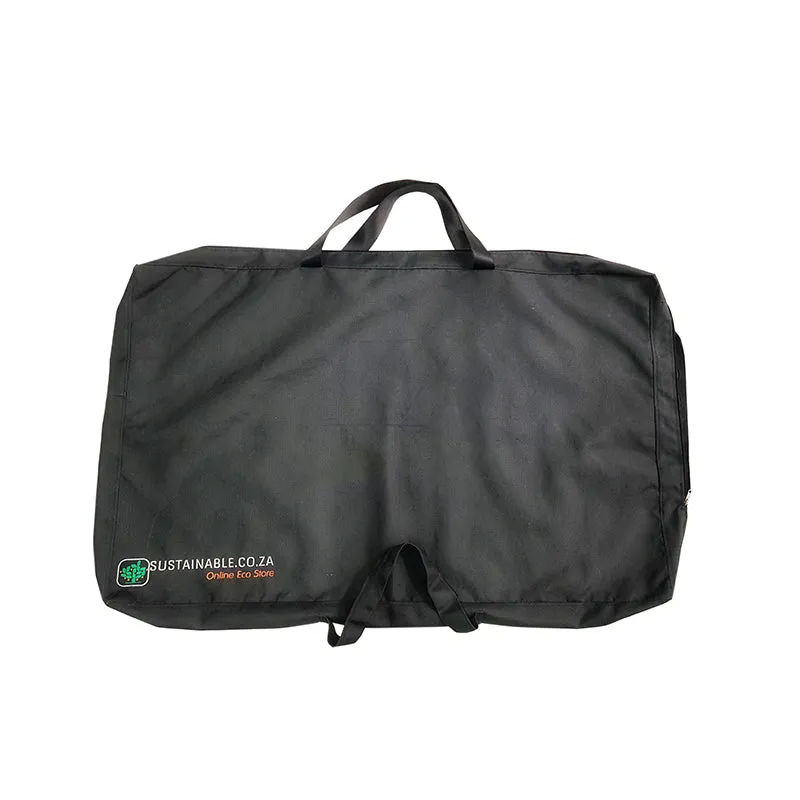

• Rip stop durable carry case with internal foam padding for extra panel protection.
• IP20 rated Victron PWM charge controller: 20A (Upgrade to MPPT options before Checkout).

Kit Specifications

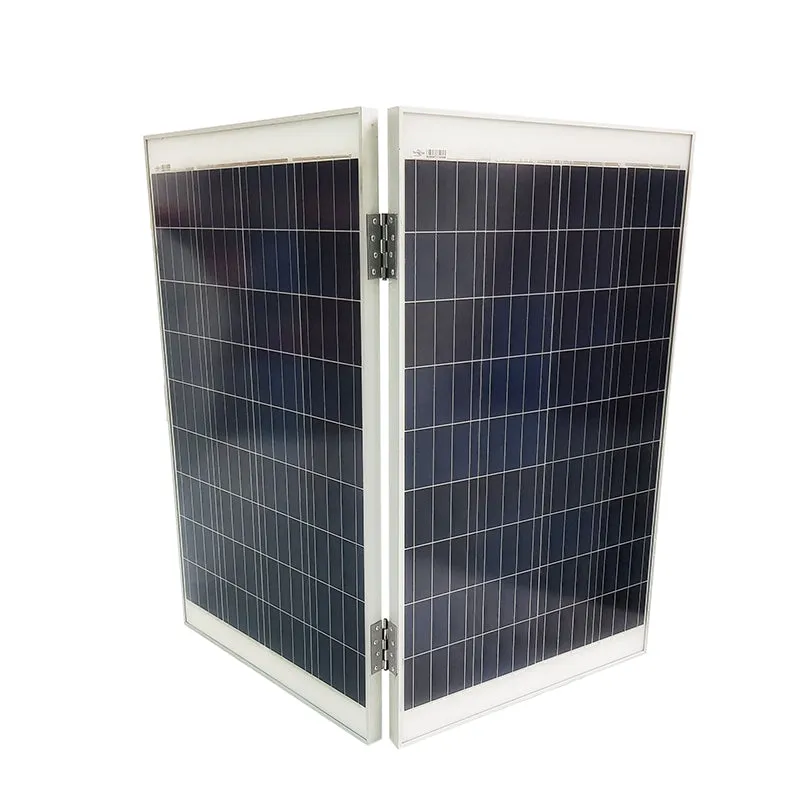

• Solar Panels: 2 x 100W.
• Folded Dimensions: 1116mm x 660mm x 80mm /-2mm.
• Weight: 22kg.
• Max-power: 200W.
• Open circuit voltage, Voe (V) - 21.92V.
• Voltage at Maximum power, Vmp (V) - 17.92V
• Current a t Maximum power, Imp (A) - 2 x 5.59A.
• Short-circuit Current: 2 x 5.95A.

Charge Controller Options

• 1 x Victron Blue Solar Light 12V/24V/20A PWM Charge Controller (Standard).
• 1 x Victron Blue Solar 100V/30A MPPT Charge Controller(Upgrade).

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
