The Game Boy DMG has evolved yet again to include more on screen controls for modern IPS LCDs.

FEATURES:

• 11% larger display than the original.

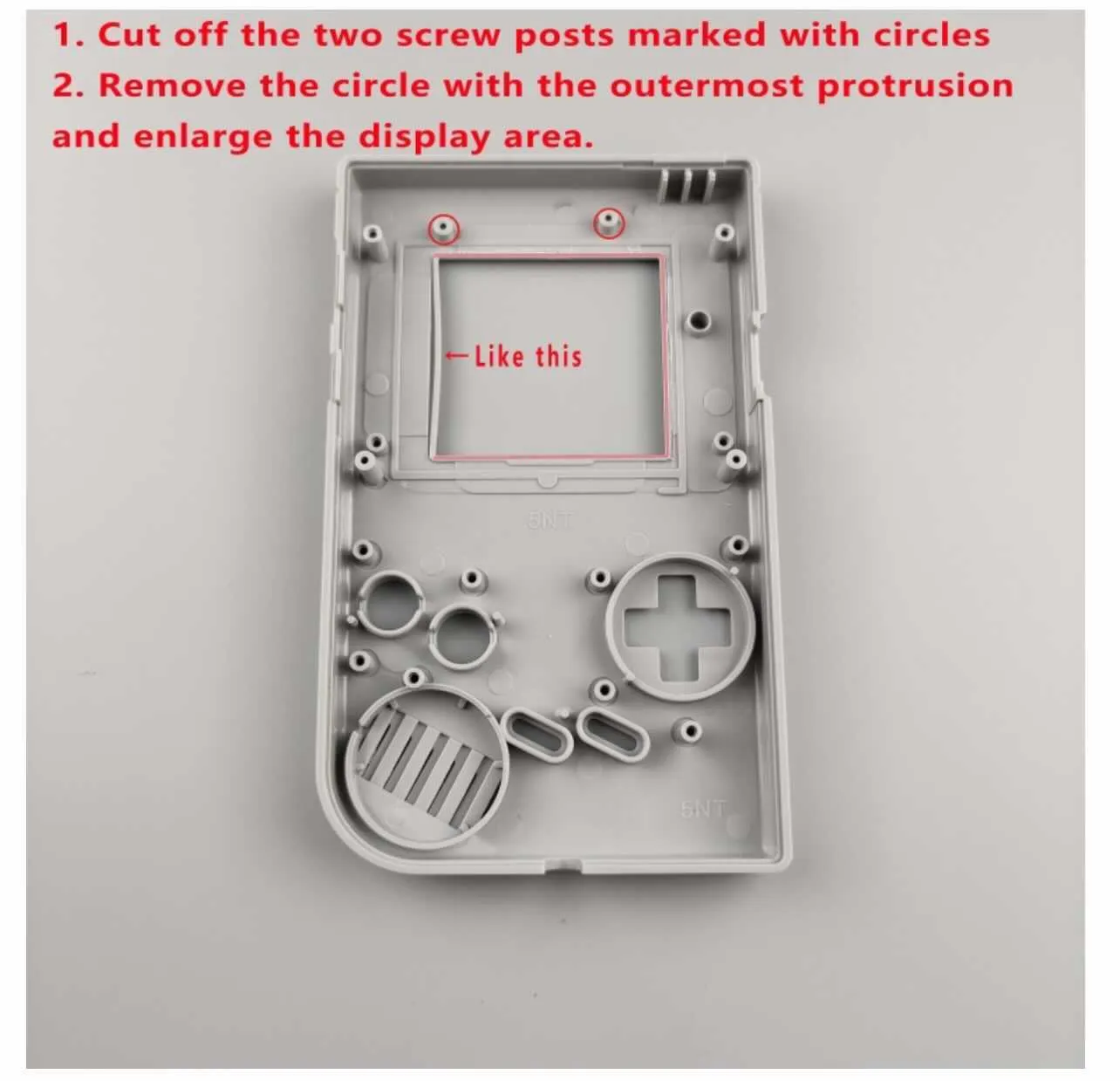

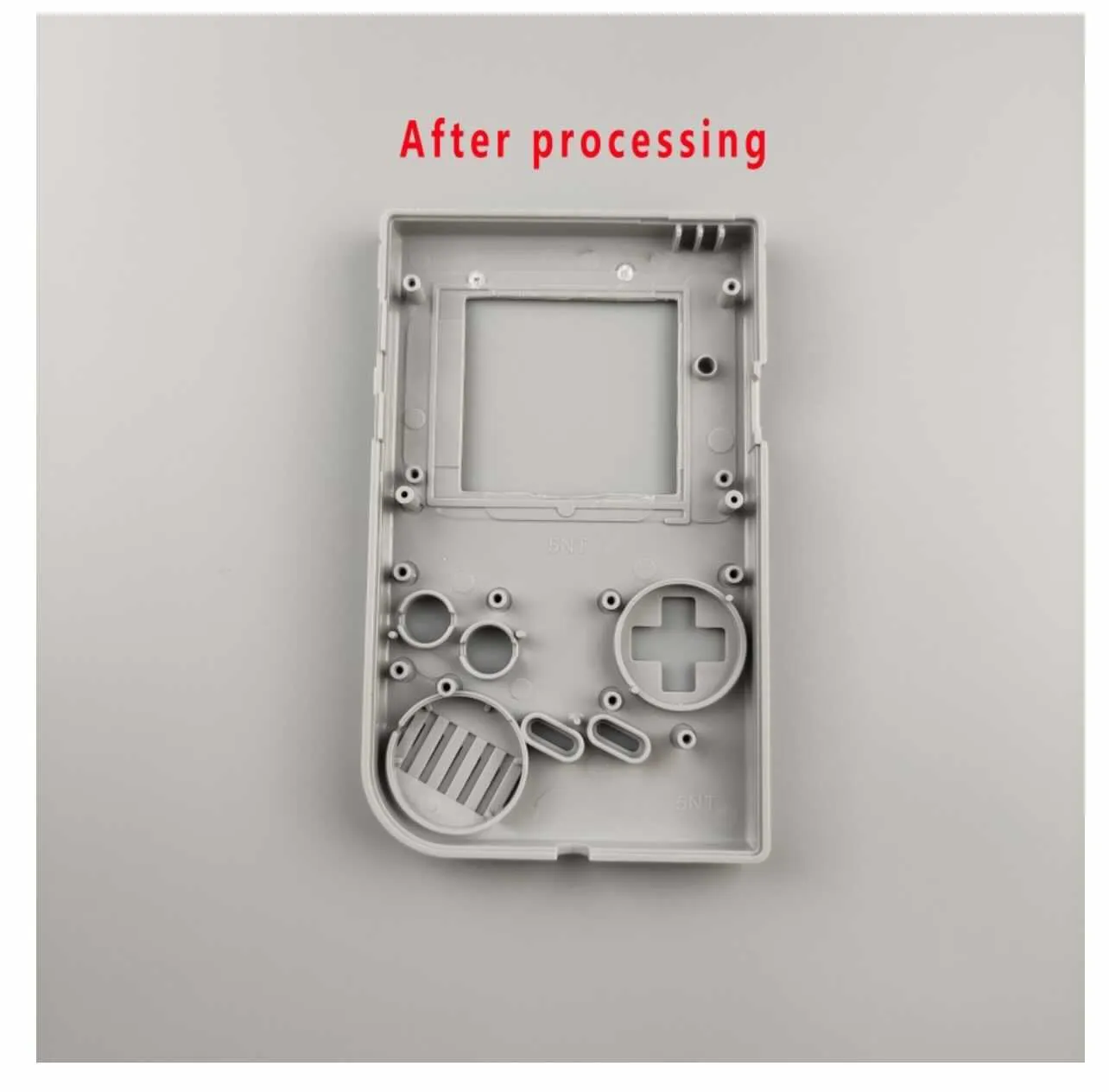

• Some minor shells modifications may be required depending on your shell.

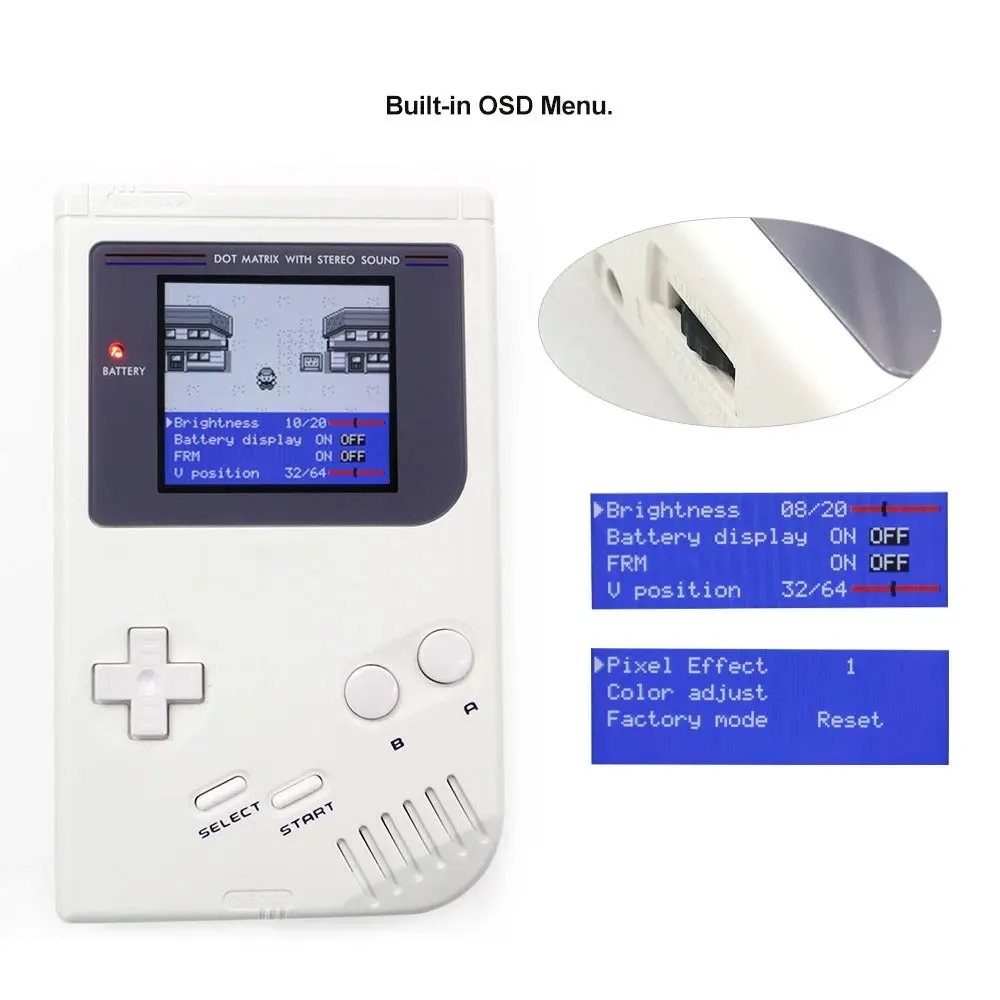

• Vertical and horizontal display adjustment with on screen controls (OSD).
• RGB capability, choose from 8 different colors with a press of a button (contrast wheel).

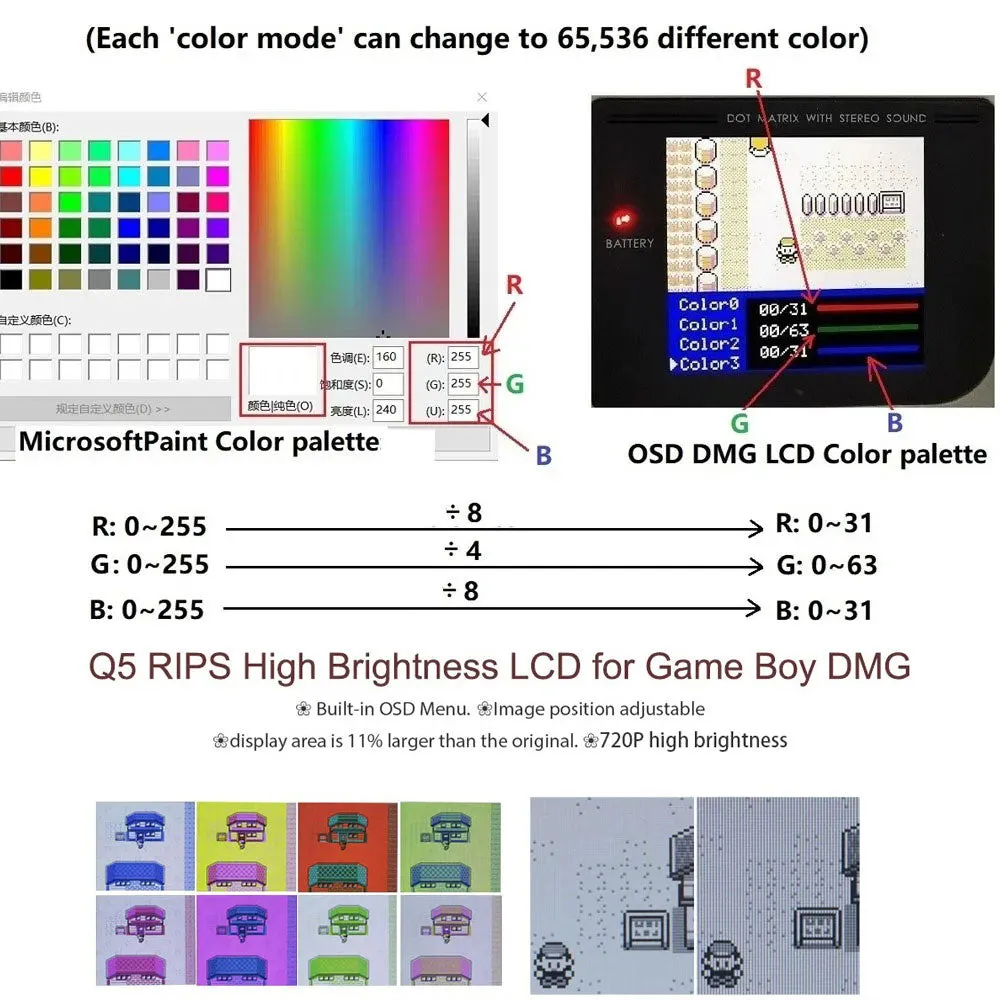

• OSD menu has Color Adjust option for RGB color balance.

• Brightness adjustment replaces contrast wheel.

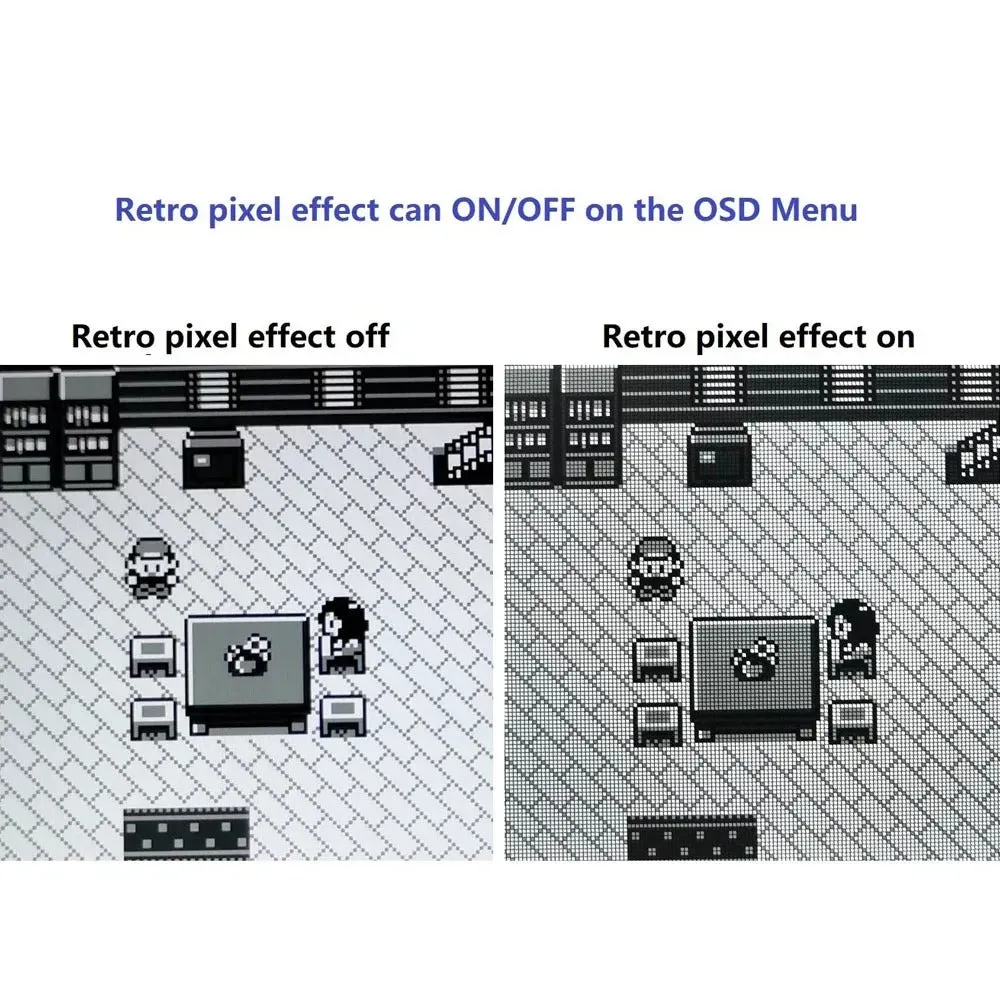

• OSD menu has Pixilation mode (retro pixel) option.
• OSD menu has Battery indicator on screen option.
• Almost solderless. The  (not included) will need to be soldered onto Front PCB.

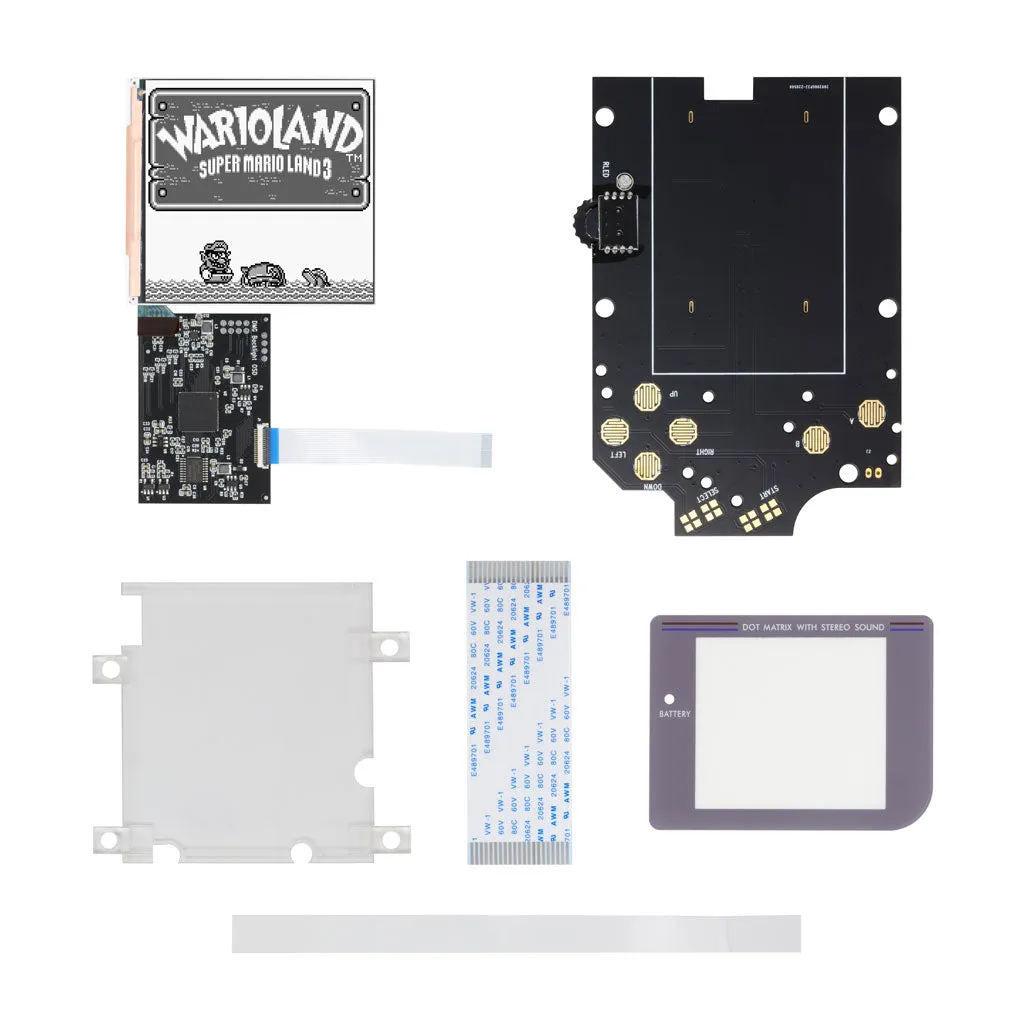

INCLUDED:

• 1x Q5 IPS LCD

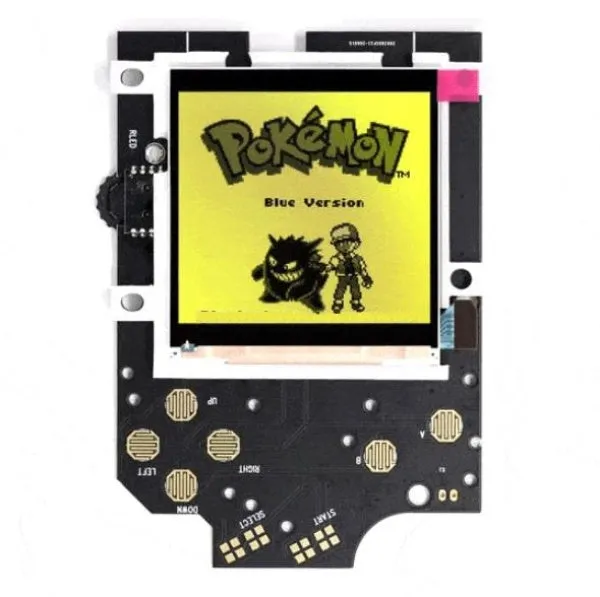

• 1x Large front PCB
• 1x Small PCB
• 1x Large ribbon
• 1x Small ribbon
• 1x Adhesive mounting strip

• 1x Aligning bracket
• 1x Q5 Gray lens

PAIRS WELL WITH:

DOCUMENTATION:

NOTES:

• This kit has a Q5 LCD that is 11% larger than the original.  to have the proper viewing window. This kit currently includes a Gray Q5 lens. If you want a different variant, you will have to purchase that separately.

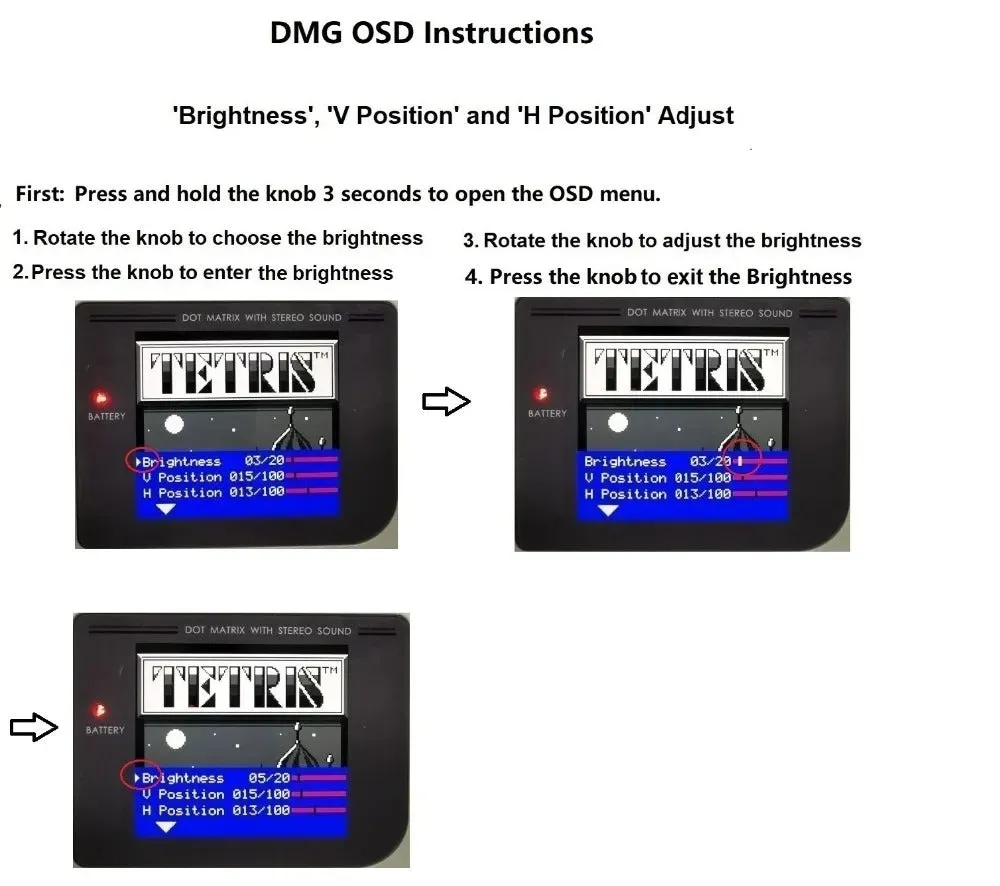

To use brightness, color, and OSD menu on contrast wheel:

• Cycle normally for brightness.
• Short press (one to two seconds) to cycle for color modes.
• Long press (five seconds) to enter OSD.

WARNINGS:

• Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
• LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
