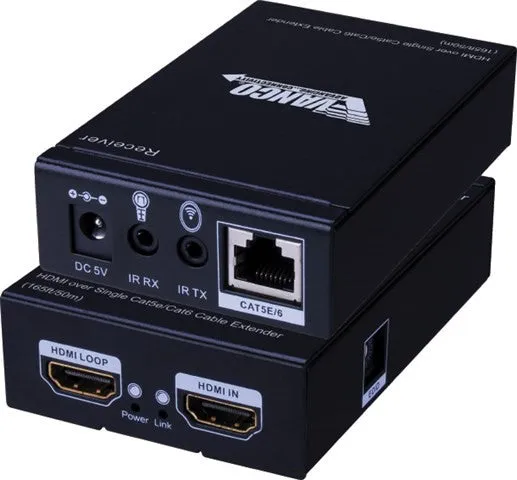

Product Details
＋
- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
- Bi-directional IR system allowing for control of source or display (IR accessories included)
- Features EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
- Features EQ distance adjustment switch for perfect transmission and reception of HDMI signals
- Features ARC for two way communication between ARC equipped display and ARC equipped A/V receiver
- Features coaxial break out to extract audio
- Allows for cascading or connecting a local display via additional HDMI loop out port
- Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
- Works with HDMI and HDCP compliant devices
- Supports up to 1080p High Definition resolution
- Compact design for an easy and flexible installation
- Dimensions 4" W x 1" H x 2.5" D
Package Contents
- (1) 280592 [TX & RX]
- (2) IR Blaster (TX)
- (2) IR Receiver (RX)
- (2) DC 5V in line power supply
- (1) Rack-mounting ear set
- (1) User Manual
| General Information | |
| Manufacturer | Vanco International, Inc |
| Manufacturer Part Number | 280592 |
| Brand Name | Vanco |
| Product Name | HDMI Over Single Cat5e/Cat6 Cable Extender |
| Product Type | Video Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 164 ft |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported |
|
| Twisted Pair Cable Standard | Category 6 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents |
|
