The G106 is a 5W portable QRP transceiver with an SDR infrastructure using 16bit CODEC sampling to deliver a superior performance.
The radio supports three transmission modes SSB/CW/AM as well as FM (88-108MHz) receive only, which allows you to listen to local FM broadcasts while operating. Having a digital CW filter with three bandwidths helps when making DX contacts. With the external DE-19 digital adapter unit (optional) the G106 can be easily connected to a computer to support digital data modes such as FT-8.
As an entry-level portable SDR transceiver, the G106 is well suited to QRP CW and FT-8 operations while also supporting SSB and AM.
Note that you may need a to operate FT8.
Basic features
➣ High-performance SDR infrastructure
➣ Compact and robust physical structure
➣ Coverage of all HF amateur radio bands between 3.5 and 29.7MHz
➣ WFM broadcast receive coverage
➣ Continuous receive coverage across all HF frequencies
➣ Amateur data communication modes are possible by connection to a computer with the appropriate software installed
➣ Computer based remote control is available via a CAT port
➣ Microphone with Speaker

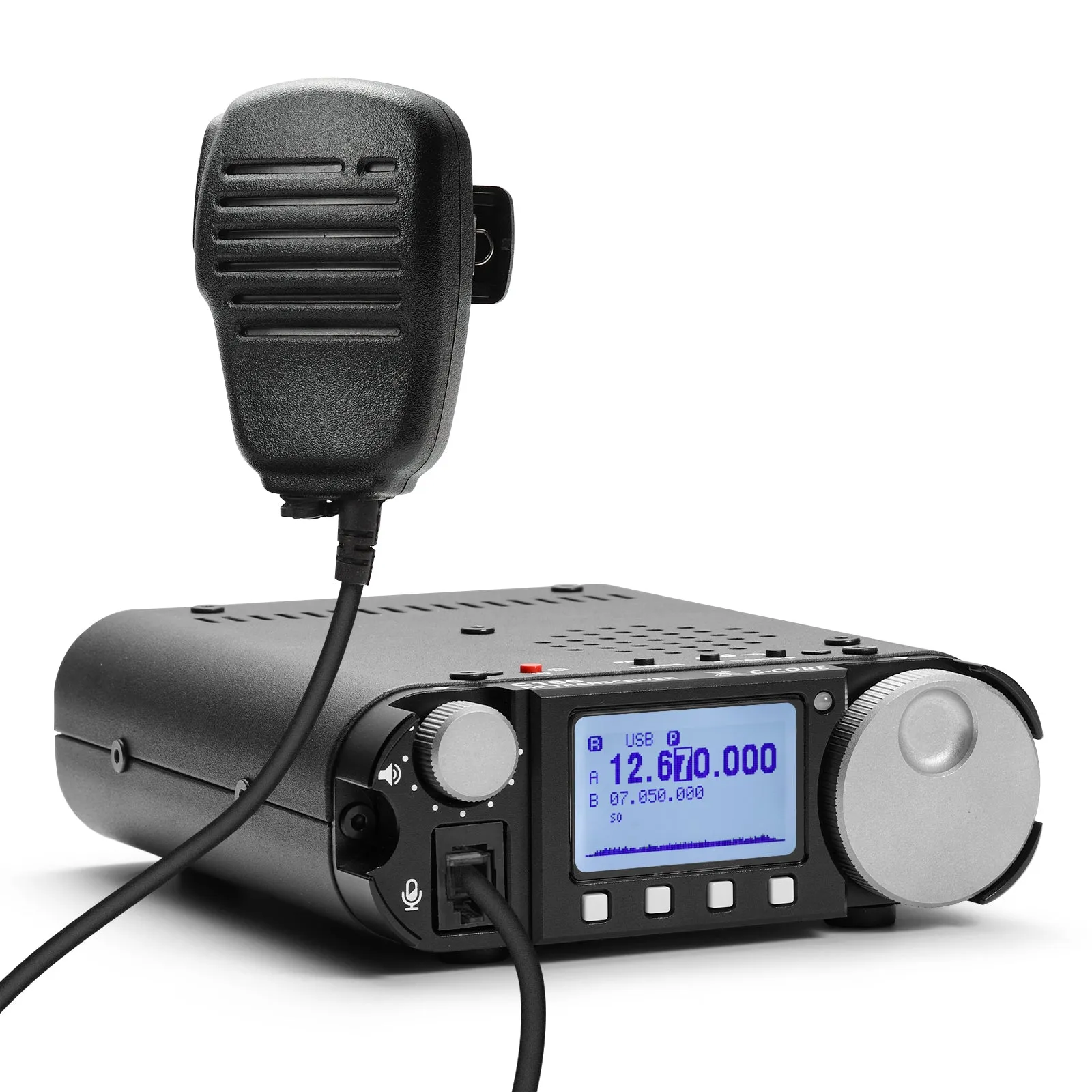

SDR Infrastructure Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the G106 can provide you more info in real-time, complete complex operations and process data faster. | SSB/CW/AM/WFM As an entry-level portable SDR transceiver, the G106 is well suited to QRP CW and FT-8 operations while also supporting SSB and AM. | Built-in Speaker Microphone Different from other Xiegu HF gear, the G106 comes with a microphone with speaker function.You can easily short-press to switch audio output from the radio to the speaker-microphone. |
Specifications
Receiving frequency: 0.55~30MHz 88~108MHz (WFM)
Transmitting frequency:
3.5～4.0MHz
5Mhz (region specific)
7.0～7.3MHz
10.1～10.15MHz
14.0～14.35MHz
18.068～18.168MHz
21.0～21.45MHz
24.89～24.99MHz
28.0～29.7MHz
(Note the listed band frequency range is IARU Region 2， to learn more about it.)
Operating mode: SSB/CW/AM, WFM (receive only)
Receiving sensitivity:
CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N
AM: 10uV @10dB S/N
Frequency stability:
±1.5ppm within 30min after power on
@25°C: 1ppm/hour
Transmitting power: ≥5W @13.8V DC
Transmitting spurious suppression: ≥50dB
Audio output power: 0.3W
Operating voltage: 9~15V DC
Standby current: 0.37A @Max
Transmitting current: 2.8A @Max

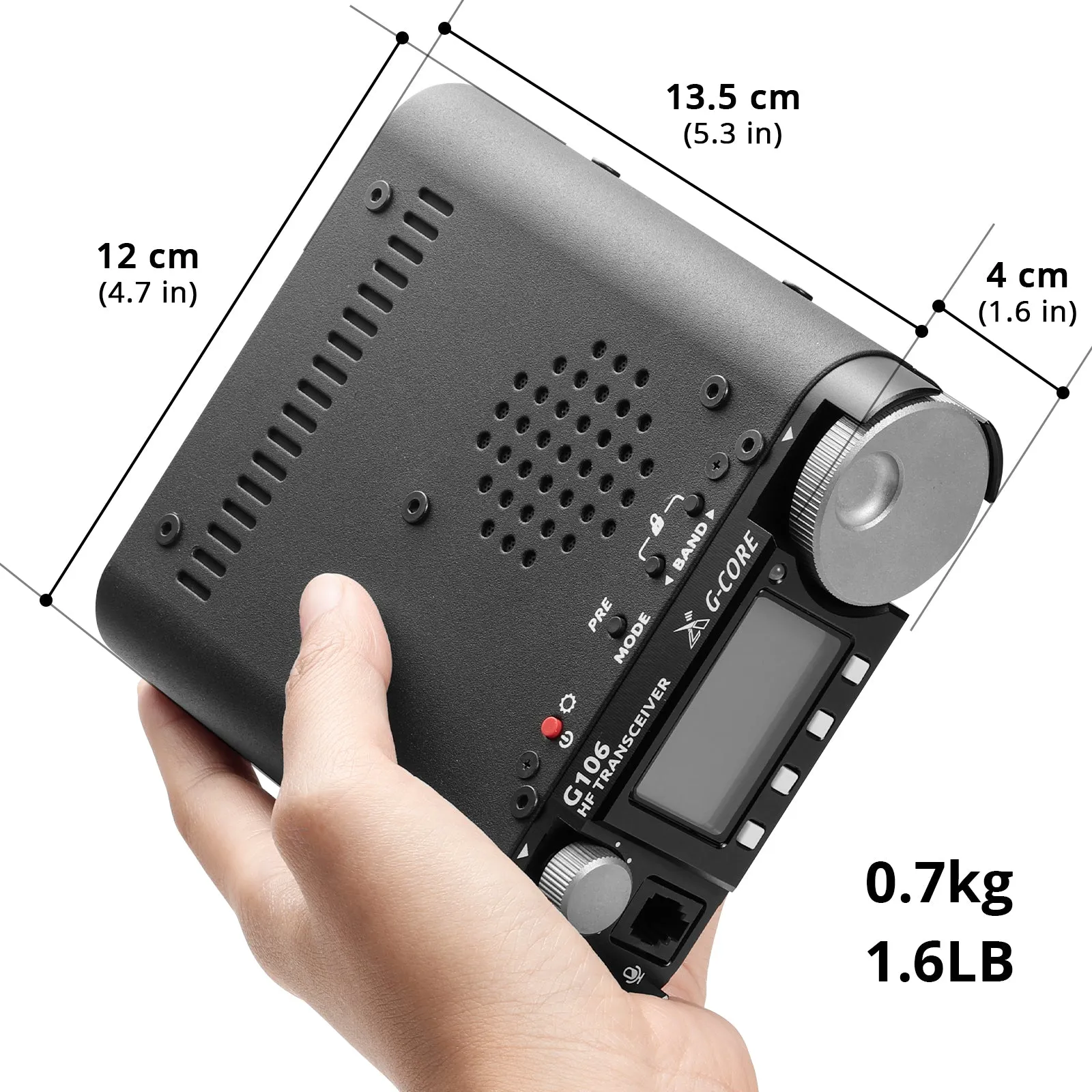

Dimensions: 4.7*1.6*5.3in | 120*40*135mm
Weight: about 1.6lb | 720g (host only)
Antenna Socket: 50 Ω BNC antenna socket
Note:
1. A 9-16V external DC power supply can be used to power the G106. The current load capacity of the power supply shall be at least 3A.
2. The G106 requires an antenna that is resonant on the frequency in use. For “wide-band” antennas an external ATU is required.
Related products (not included in the package)
1. 100W Power Amplifier
2. Expansion Port for easy PC connection
3. Digital Audio Noise Filter
4. 40m/20m/15m/10m 4-band Vertical Antenna
5. 100W Portable Power Station

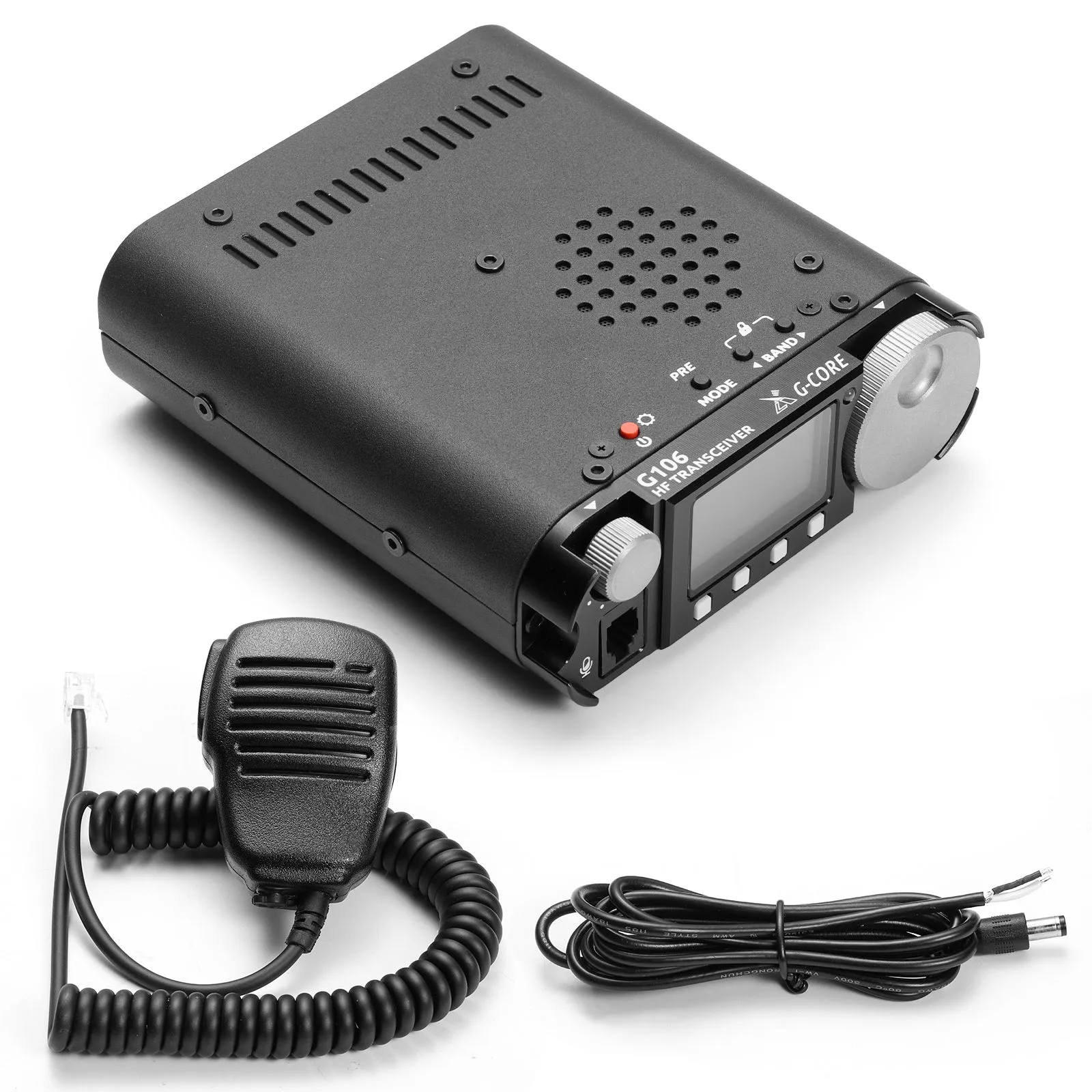

What's in the box?
1 x Xiegu G106 Radio
1 x Microphone
1 x Power Cable
